| Capability | Diameter / envelope | Max length / depth | Machine |
|---|---|---|---|
| 2-axis CNC turning | 10" (254 mm) chuck | 41" (1,050 mm) | DN Solutions 2600/2100 (×5) |
| CNC turning with driven tools | 12" (305 mm) chuck | 50" (1,275 mm) | Doosan GT 3100 LM - 24-station turret; milling, drilling and threading in one setup |
| CNC turning with Y-axis | 12" (305 mm) chuck | 83.7" (2,125 mm) | Doosan Puma 3100 XLY - ±65 mm Y-axis travel; eccentric and off-centre features |
| Twin-spindle CNC turning | 12" (305 mm) chuck | 18" (461 mm) | Doosan Puma V400-2SP - high-productivity twin spindle; simultaneous front and back machining |
| Multi-task mill-turn (large diameter) | 520 mm max turning diameter | 1,100 mm max turning length | DN Solutions DNX 2100 - combined turning and milling |
| 5-axis simultaneous mill-turn | 10" chuck (twin spindle); barfeed to 80 mm | 60" (1,540 mm) | DN Solutions SMX2600S - complex parts complete in one setup |
| 5-axis simultaneous milling | 16" ø × 12" (400 × 300 mm) working envelope | - | DN Solutions DVF 5000 - 12-station automated pallet changer |
| 3+1 milling (large) | 41" × 22" × 20" (1,050 × 570 × 510 mm) | - | Doosan DNM 5700 - 10" rotary 4th axis |
| 3+1 milling (medium) | 31" × 18" × 20" (800 × 450 × 510 mm) | - | Doosan DNM 4500 - 10" rotary 4th axis |
| Deep hole boring - solid drilling | Bore ID to 5.25" (135 mm); max bar 12" (305 mm) | 118" (3,000 mm) | |
| Deep hole boring - counterboring | Bore ID to 6.875" (175 mm); max bar 12" (305 mm) | 118" (3,000 mm) |
Envelope data sourced from machine specifications. Each row represents the capacity of a single machine; figures are not combined across machines.

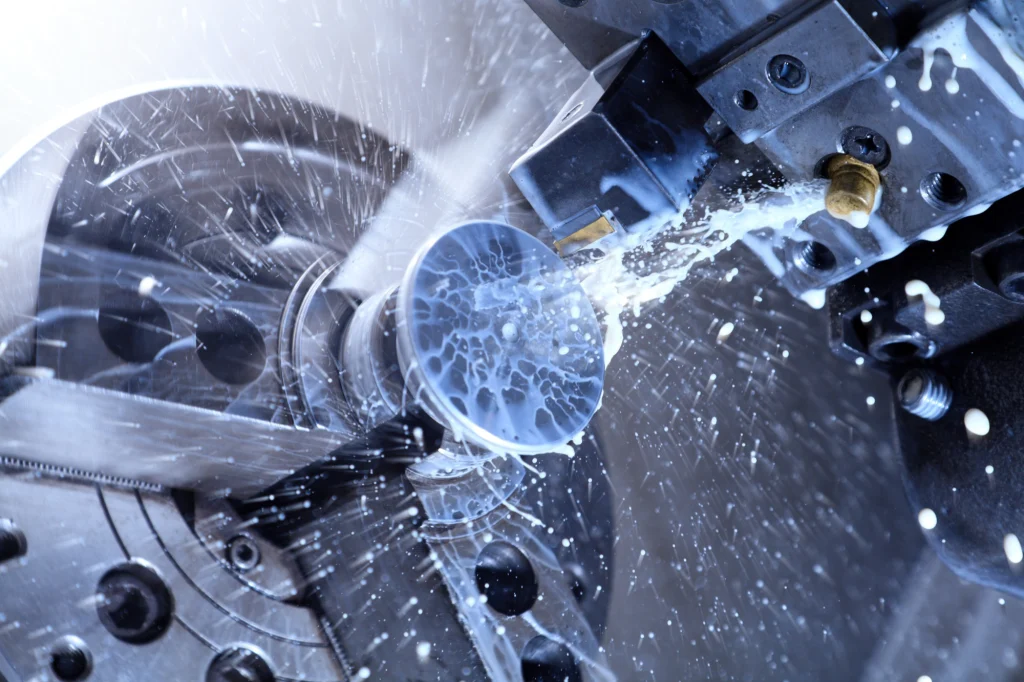

Our machining plant in the Midlands runs DN Solutions and Doosan CNC machining centres covering turning, 5-axis milling, mill-turn and deep hole boring.
Bar processing services are provided by Copeland & Craddock, a Langley Alloys Group company. About our group.
Contact Copeland & Craddock| Service | Range / specification |
|---|---|
| Bar peeling | 12-210 mm diameter; tolerances H10-K12; lengths 2.4-13.1 m |
| Bar grinding | 6-50 mm diameter; h8 (≥18 mm) / h9 (<18 mm) |
| Bar straightening | 6-75 mm diameter |
| Sawing / cutting | To 420 mm diameter |
| CNC turning | To 445 mm diameter; 2.2 m length |

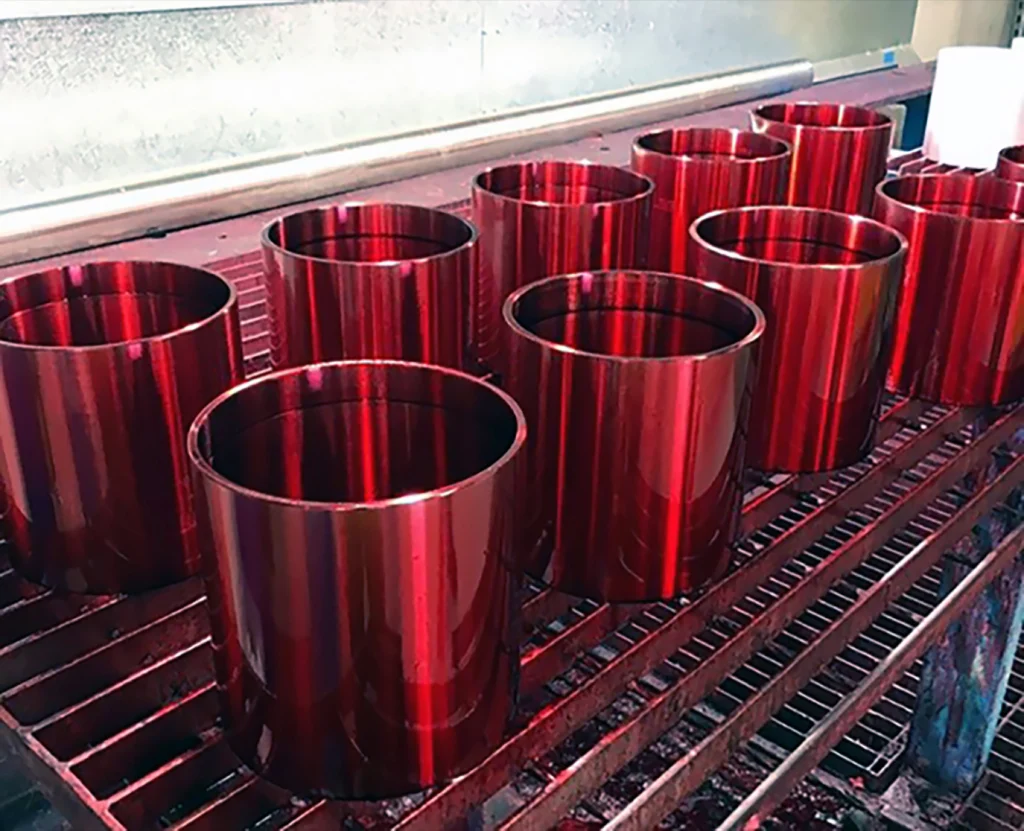

In-house inspection and testing at our Midlands plant:
Full details and additional testing services are on our Inspection & Testing page.
Copeland & Craddock, a Langley Alloys Group company, supplies engineering steels: EN1, EN3, EN8, EN16, EN19 and EN24, available in various sizes, cut to length and ready for machining or fabrication.
Contact Copeland & Craddock
Cold drawing pulls hot rolled bar through a die at room temperature, improving dimensional accuracy, surface finish and mechanical properties. Offshore Stainless & Alloys, a Langley Alloys Group company, cold draws stainless, duplex, super duplex and nickel alloy bar in round, hexagonal, square and flat forms: round to 4 inch, hexagon to 55mm across flats, in lengths up to 16m and to h11 tolerance. Its cold drawn UNS S32760 super duplex bar is NORSOK approved to MDS D59/D59L (strain hardened), serving offshore, energy, marine and industrial applications.
Contact Offshore StainlessBeyond machining, we add value to your order in-house and through trusted partners, so more of the process sits under one contact.
Rings, blanks and shafts sourced through our long-standing industry relationships, using free-issue stock from our own warehouse. A practical route to forged components in our specialist grades, including sizes that are hard to source elsewhere.
Bar ground to improved dimensional tolerance and straightness, for components that run in seals, bearings or interference fits. Managed with specialist sub-contractors to keep handling and packaging quality high.
We can supply bar heat treated to the condition your application needs, to your specification and with full certification. Common options include solution annealing, age (precipitation) hardening and stress relief. Sourcing the material and its heat treatment together keeps testing and handling under one order and shortens lead times.
Request a quote
Fast quotes from UK and US stock - bar, plate and pipe, cut and certified to spec.
Machined in house, from bar to finished component.
